Magnum Bikes Ui5

Magnum Bikes Ui5
This item is currently not available.


A beautifully designed, purpose built, affordable electric bike well suited to urban riding or commuting.
Step-thru frame is easy to mount.
Strong 350 watt motor paired with a large 36 volt 13 amp hour battery pack, offers both pedal assist and throttle mode.
One-cable design connecting the display to the controller eliminating excess cables running to the controller.
Built in USB charge point turns your ebike battery into a power supply for all mobile devices.
One year comprehensive warranty.

Model : Magnum Ui5
Body Position Upright
Electric Bike Class : Throttle on Demand
Warranty : 1 Year Comprehensive
Electronic Details:
Motor: 8Fun – Rear-Mounted Geared Hub 350 watt
Battery: Samsung 18650 26F 36 volt 13 ah / 468 wh – Lithium Nickel Cobalt Manganese (Li-NCM)
Estimated Charge Time / Estimated Min and Max Range : 6 hrs / 25 to 55 miles
Display Type / Readouts : Fixed Backlit Monochrome LCD / Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed: 22 mph (20 mph throttle only)
Bicycle Details:
Total Weight / Battery Weight : 51 lbs, 7 lbs
Frame Types / Frame Sizes : Step-Thru / 17 in
Frame Material: 6061 Aluminum Alloy
Fork Details : SR Suntour XCT Suspension with 100 mm Travel
Attachment Points : Rear Rack Bosses, Fender Bosses
Gearing Details / Shifter Details : 7 Speed 1×7 Shimano Tourney TX / Shimano Triggers on Right Bar
Cranks / Pedals : Prowheel Ounce / Wellgo C127, Aluminum Alloy Platform
Headset / Stem / Handlebar : Oversized, Tapered / Promax, Tool-Free Adjustable Angle / Mid-Rise
Brakes Details : Tektro Mechanical Disc with 180 mm Front Rotor and 160 mm Rear Rotor, Artek Levers with Motor Inhibitor
Grips / Saddle: Flat Rubber / Selle Royal (Magnum Branded)
Seatpost / Seatpost Diameter: Promax / 27.2 mm
Rims : Double Walled
Tires: Schwalbe Big Ben 26 in (26? x 2.15?)/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve

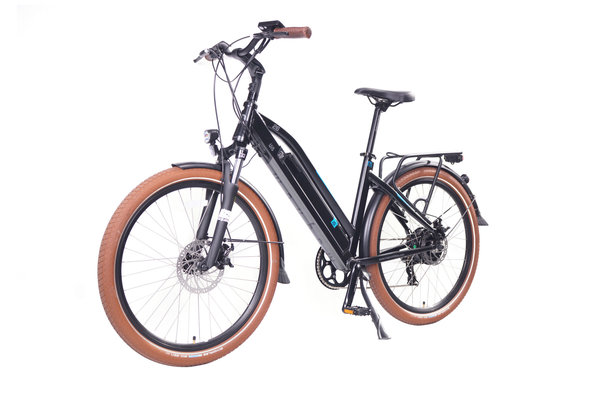

Magnum Ui5 Electric bike
